Temperature Sensor
Temperature Sensor
C5C-1263-2-SP-T

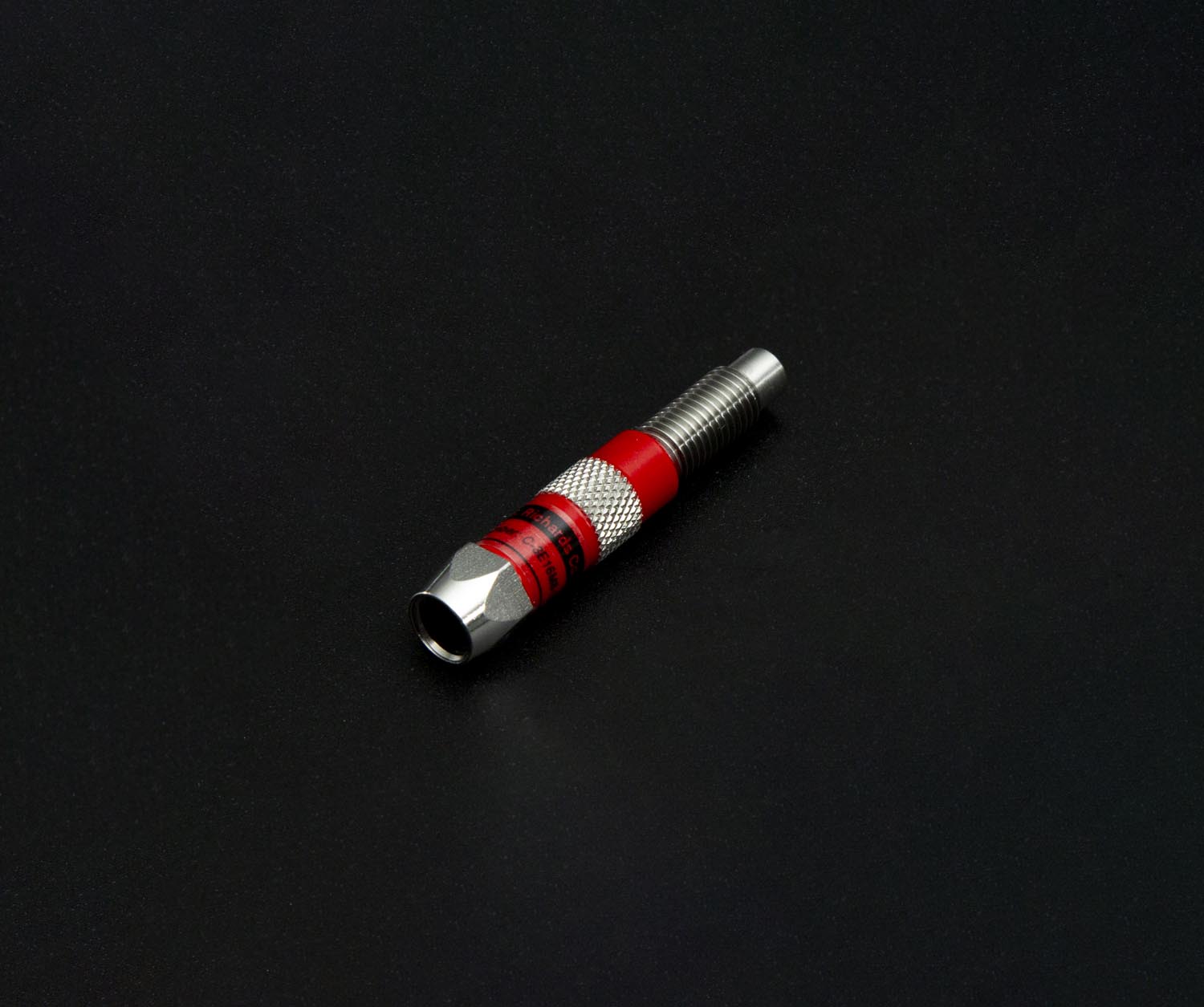

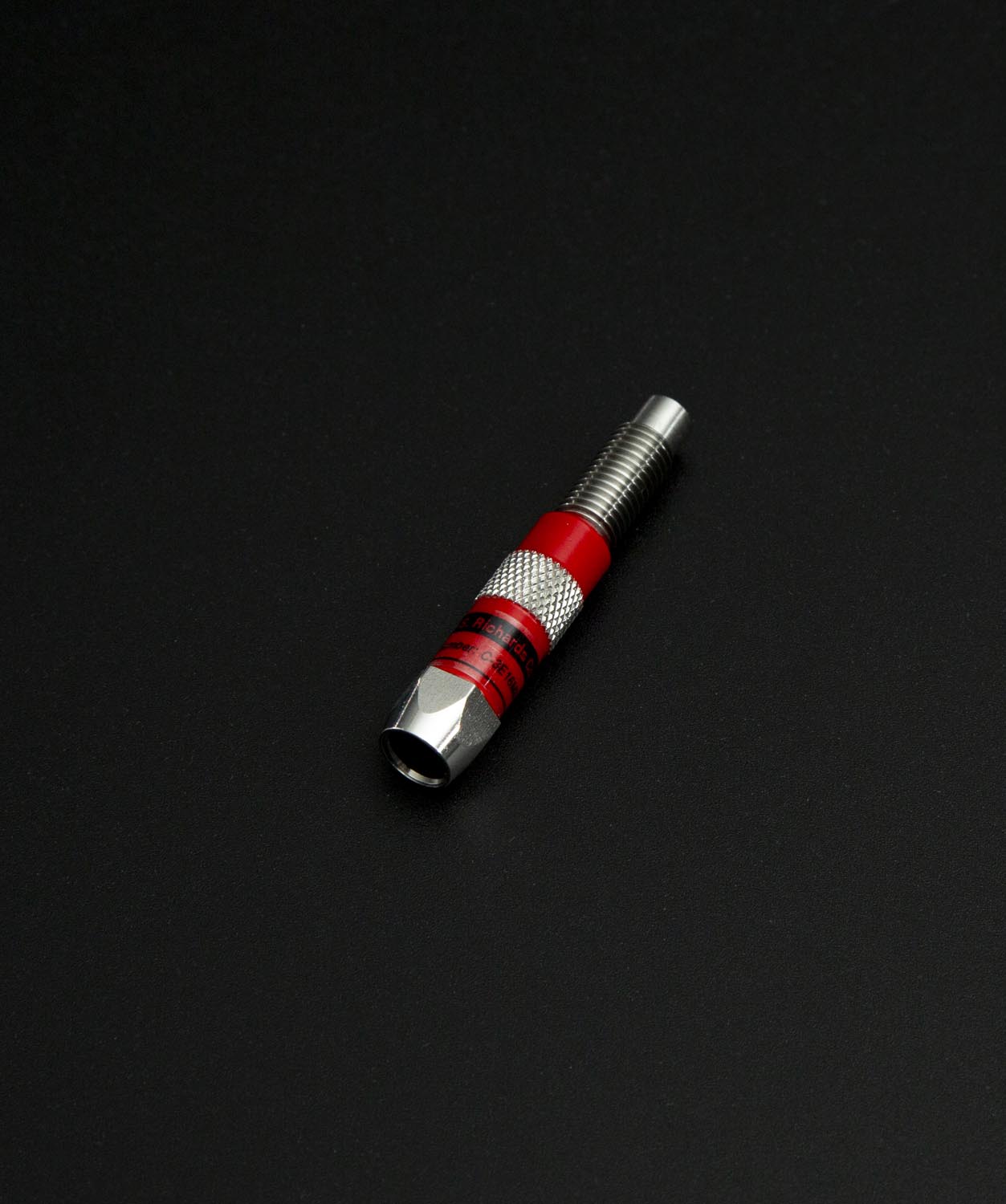

The C-3E16M8-11 Platinum RTD temperature sensor cartridge can be screwed directly into the bottom port on C5C series anemometers. The temperature sensor cartridge has a high accuracy 3 wire PT100 element.

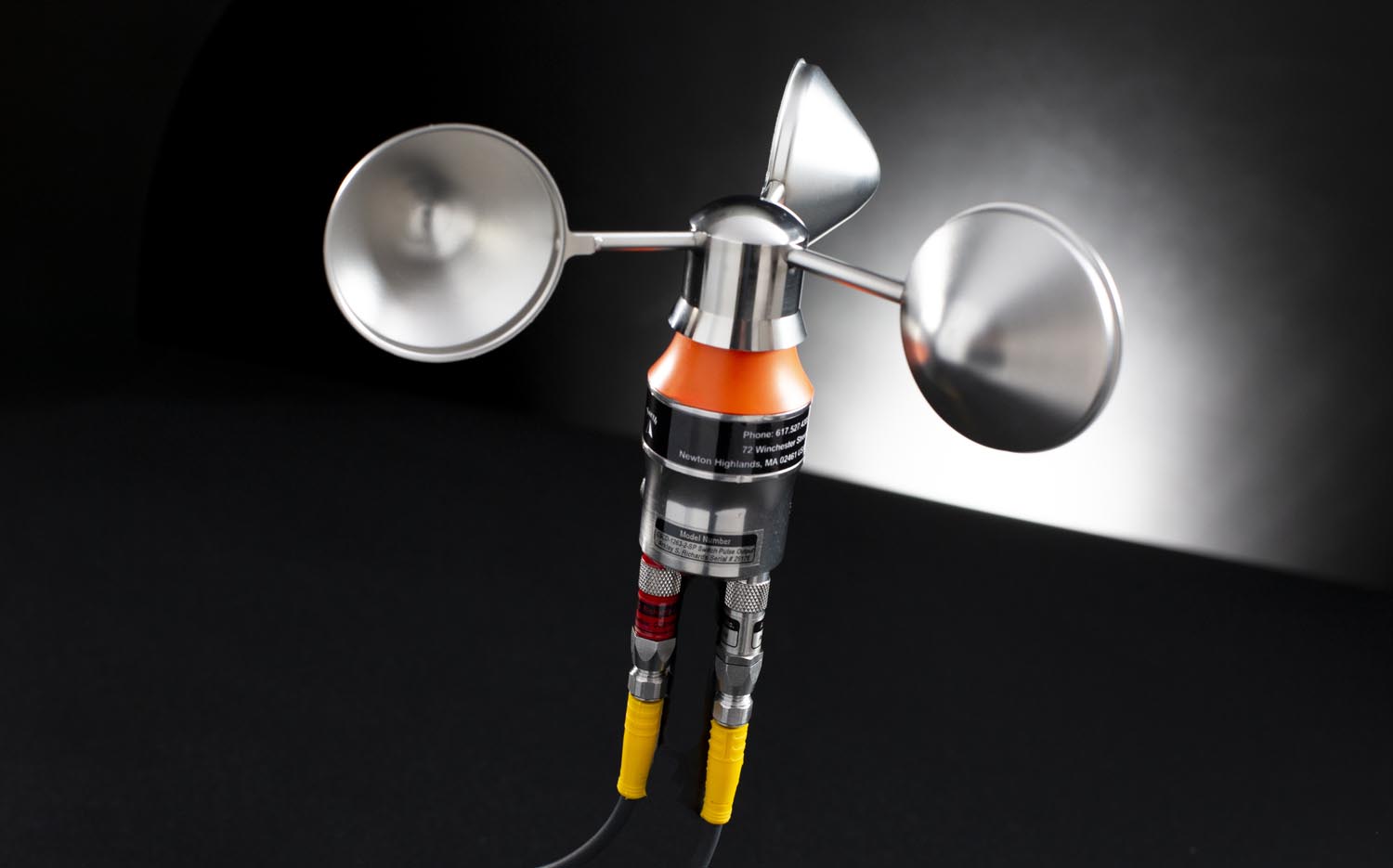

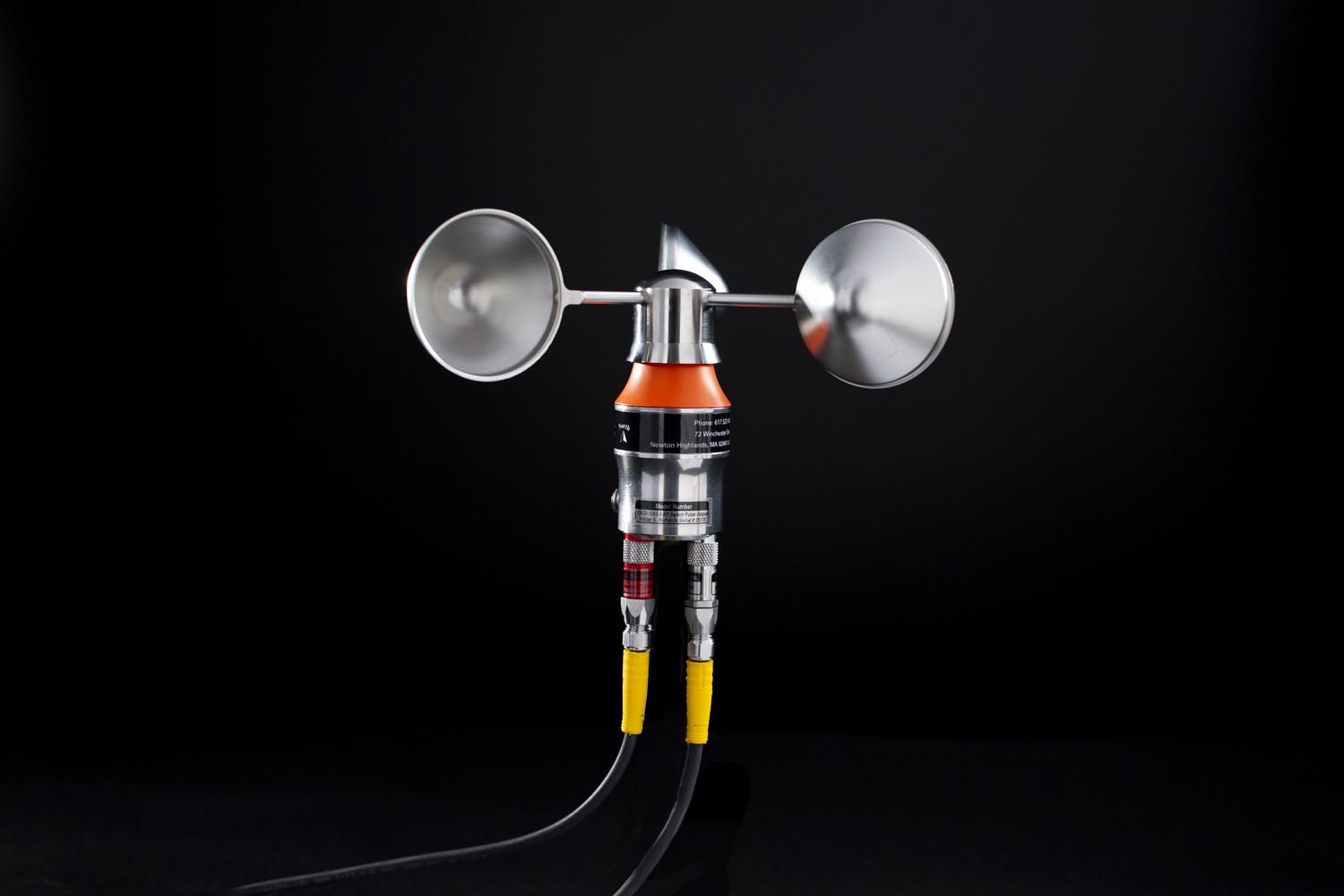

When the cartridge is installed, the C5C anemometer will have two separate data cables. One cable will be used for switch pulse wind speed data and the second cable will be used for temperature data. Temperature sensor cartridges are color coded red and switch pulse cartridges for wind speed are silver to avoid any confusion during wiring.
The C-3E16M8-11 temperature sensor can be added to all types of C5C series anemometers.
Superior Design, Superior Performance
From the peak of Mount Everest to 300 feet below the ground, our anemometers are built for resiliency, precision, and durability.
Technical Specifications
Richards High Accuracy Platinum RTD Temperature Sensore
- C5C-1263-2-SP-T – Temperature Sensor Part Number
- Type – Platinum RTD, 100 Ω, High Accuracy, 3 Wire Element
- Accuracy – ( +/- .1ºC at 0ºC)
- Operating Range – Minimun -58ºF, Maximum 572ºF (-50ºC to 300ºC)
Materials of Construction
- Cartridge Housing – 316 Stainless Steel
- Cartridge Receptacle – Nickel Plated Brass
Physical Dimensions
- Length – 2.18 inches or 55.372 mm
- Max Diameter – .445 inches or 11.303 mm
Temperature Sensor Housing (Cartridge) Color Coding
- Cartridge Housing Identification Color Code – Red, Red
External Electrical Connections and Cable Specifications
- Cable Connection and Termination – M8 round 3 pin receptacle
- Cable Required – Male M8 3 pint plug, 3 conductor, 24 gauge, shielded with drain, PE jacket
- Cable Color Coding for M8 Male Connector – Blue Single, Black Single, Brown and single bare drain
Temperature Sensor Mechanical Connection
- Thread Size – Male 5/16 – 24 Thread

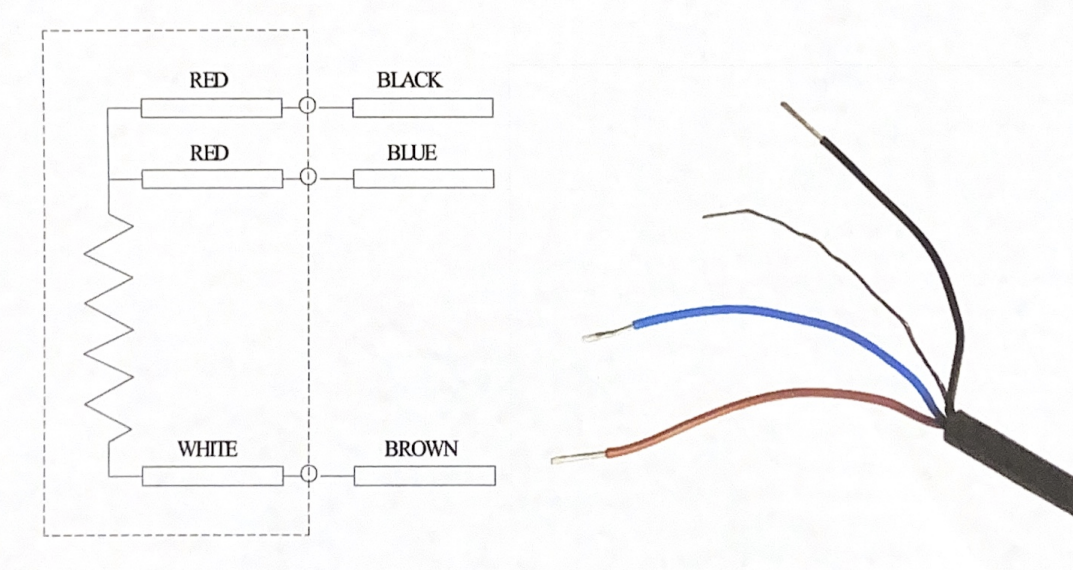

3 Wire RTD Cartridge Wiring Diagram
